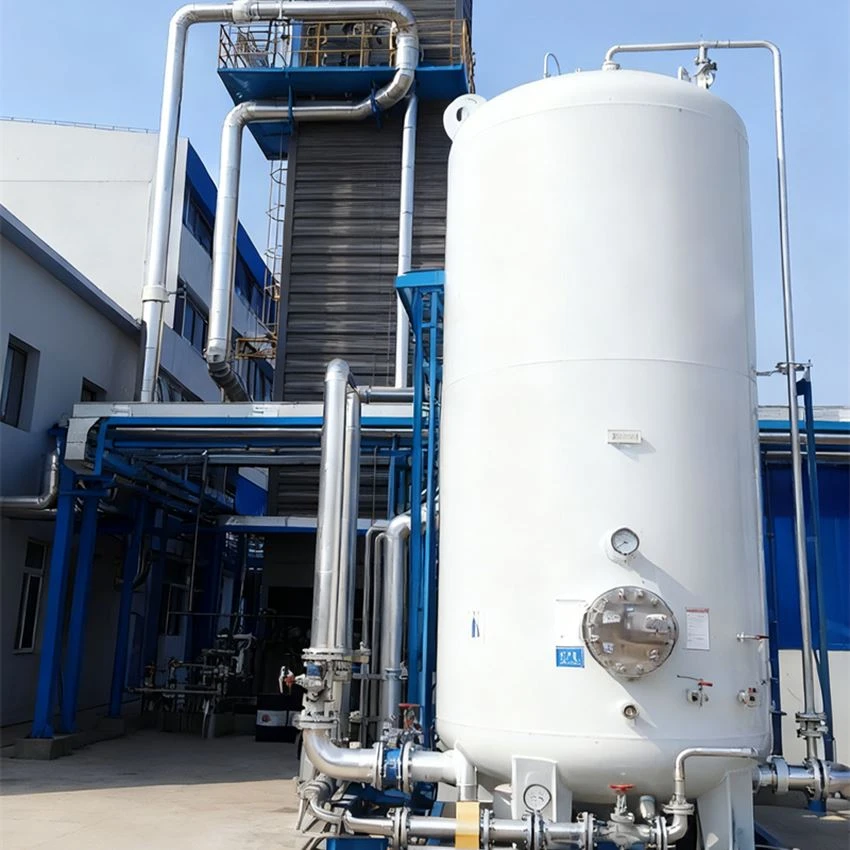

Cryogenic Nitrogen Plant
Cryogenic Nitrogen Plant Manufacturer | Large-Scale Industrial Air Separation Solutions
As a professional Cryogenic Nitrogen Plant manufacturer and global supplier, we provide advanced cryogenic air separation solutions for customers requiring large-volume, high-purity, and continuous nitrogen supply.
Our Cryogenic Nitrogen Plants are designed based on mature Air Separation Unit (ASU) technology, utilizing low-temperature rectification to separate nitrogen, oxygen, and other atmospheric components.
The systems are engineered for long-term continuous operation, delivering high nitrogen purity, excellent operational reliability, optimized energy consumption, and low lifecycle costs.
From process engineering and equipment manufacturing to installation guidance, commissioning, and long-term technical support, we provide complete turnkey nitrogen generation solutions for global industrial customers.
Why Choose Cryogenic Nitrogen Generation?
For industries with large and continuous nitrogen demand, on-site cryogenic nitrogen production offers significant advantages compared with liquid nitrogen purchasing or other supply methods.
Lower Long-term Operating Cost
Large-scale nitrogen consumers can reduce dependence on external gas suppliers and lower overall nitrogen supply costs through on-site production.
Ultra-high Nitrogen Purity
Cryogenic technology can achieve nitrogen purity up to 99.9999% or higher, suitable for demanding industries such as semiconductor manufacturing, electronics, and precision industrial processes.
Large Production Capacity
Cryogenic plants are suitable for medium to extremely large nitrogen demand, with capacities ranging from hundreds to more than 100,000 Nm³/h.
Multiple Gas Production Capability
A cryogenic ASU can be configured to simultaneously produce:
- Gaseous Nitrogen (GAN)
- Liquid Nitrogen (LIN)
- Oxygen
- Argon
This provides greater flexibility and maximizes the utilization of air resources.
Long Service Life
With proper operation and maintenance, cryogenic nitrogen plants can provide reliable operation for 20 years or more.
Air Compression and Purification
Ambient air is compressed and purified to remove moisture, carbon dioxide, hydrocarbons, and other impurities, ensuring reliable low-temperature operation.
Cryogenic Cooling and Refrigeration
The purified air passes through a high-efficiency heat exchanger and expansion turbine system, where it is cooled to cryogenic temperatures.
Air Separation by Distillation
Inside the cryogenic distillation column, nitrogen, oxygen, and argon are separated according to their different boiling points.
High-purity nitrogen is collected from the top section of the distillation column.
Product Delivery and Automatic Control
The generated nitrogen is delivered as gaseous or liquid products according to customer requirements.
Advanced PLC or DCS control systems enable automatic operation, real-time monitoring, safety protection, and process optimization.
Technical Specifications of Cryogenic Nitrogen Plant
|
Parameter |
Specification |
|
Nitrogen Purity |
99.9% – 99.9999% or customized |
|
Nitrogen Capacity |
100 – 100,000+ Nm³/h |
|
Product Form |
GAN / LIN |
|
Operating Pressure |
Customized according to application |
|
Operation Mode |
Fully automatic 24/7 operation |
|
Control System |
PLC / DCS intelligent control |
|
Technology |
Cryogenic Air Separation Unit (ASU) |
|
Optional Products |
Oxygen and Argon |
A complete cryogenic nitrogen generation system generally includes:
- Air compressor system
- Air purification unit (APU)
- Molecular sieve purification system
- Main heat exchanger
- Expansion turbine system
- Cryogenic distillation column
- Liquid storage and vaporization system
- PLC or DCS automatic control system
- Instrumentation and safety protection system
Each system is engineered based on the customer’s production demand, utility conditions, installation environment, and future expansion plans.
Industries We Serve
Steel & Metallurgy
- Heat treatment
- Continuous annealing
- Protective atmosphere
- Iron and steel processing
Petrochemical & Chemical Industry
- Pipeline purging
- Tank blanketing
- Process protection
- Safety inerting
Semiconductor & Electronics
- Semiconductor fabrication
- Electronic component production
- Ultra-high purity manufacturing environments
New Energy & Lithium Battery
- Electrode manufacturing
- Inert atmosphere protection
- Sensitive material processing
Aerospace & Advanced Manufacturing
- Precision manufacturing
- Testing environments
- High-performance industrial applications
Pharmaceutical & Medical Device Manufacturing
- Controlled production atmosphere
- High-purity process requirements
Selecting a suitable cryogenic nitrogen system requires evaluation of several key factors:
- Required nitrogen purity
- Nitrogen production capacity (Nm³/h)
- Gas or liquid nitrogen requirement
- Product pressure requirement
- Continuous operating hours
- Local utilities such as electricity, cooling water, and compressed air
- Future production expansion plans
Our engineering team provides professional process analysis and customized system recommendations based on your project conditions.
Typical Project Application Cases
Cryogenic Nitrogen Plant for Petrochemical Industry
Customer Requirement
- Continuous 24/7 nitrogen supply
- High nitrogen purity
- Reliable operation in harsh industrial conditions
Solution: Customized cryogenic ASU with advanced purification, distillation, and automatic control systems.
Result: Stable nitrogen production, reduced dependence on external nitrogen delivery, and improved production reliability.
Cryogenic Nitrogen Plant for Semiconductor Manufacturing
Customer Requirement: Ultra-high purity nitrogen and strict process stability.
Solution: Customized high-purity cryogenic nitrogen system with precise process control and advanced monitoring.
Result: Reliable nitrogen quality and stable operation for sensitive manufacturing processes.
Reliable cryogenic plants require strong engineering and manufacturing capability.
Our quality management system follows international standards and strict manufacturing procedures.
Quality control includes:
- Raw material inspection
- Component quality verification
- Precision manufacturing and assembly
- Welding and pressure testing
- Leak testing
- Factory Acceptance Testing (FAT)
- Performance verification before shipment
Our manufacturing philosophy focuses on reliability, safety, and long-term operation performance.
Turnkey Engineering & Project Management Capability
We provide complete lifecycle support for cryogenic nitrogen projects.
Our services include:
Engineering Phase
- Process design
- Equipment selection
- P&ID and technical documentation
- Project planning
Manufacturing Phase
- Production management
- Quality inspection
- Manufacturing progress tracking
Installation & Commissioning
- Installation supervision
- System commissioning
- Operator training
- Performance optimization
Long-term Service
- Remote technical support
- Spare parts supply
- Preventive maintenance recommendations
- Operation optimization assistance
Choosing a reliable supplier is critical for the success of a long-term industrial gas project.
Our advantages include:
- Professional experience in cryogenic air separation technology
- Customized engineering capability
- Advanced process design
- Strict quality control and testing
- Global export and project delivery experience
- Complete turnkey project support
- Responsive technical service
- Long-term partnership commitment
Our mission is to help customers achieve reliable nitrogen production, lower operating costs, and sustainable industrial development.
